FAQ

  • How Are Prefabricated Buildings Designed?

    There are many different choices when it comes to designing prefabricated buildings. They can be built using:
    Steel frame
    Wood frame
    Concrete construction
    Modular systems
    And more.......
    Nowadays, prefabricated buildings are associated with a “modern” look that is becoming popular. Plus, prefabricated buildings are associated with the “green movement,” since they’re made with environmentally friendly, sustainable materials.
    Ready to see if a prefabricated building is the right choice for you?
    To get started, visit our wesite: www.sinosteelstructure.com or call us +86-15853209069 to get in touch!

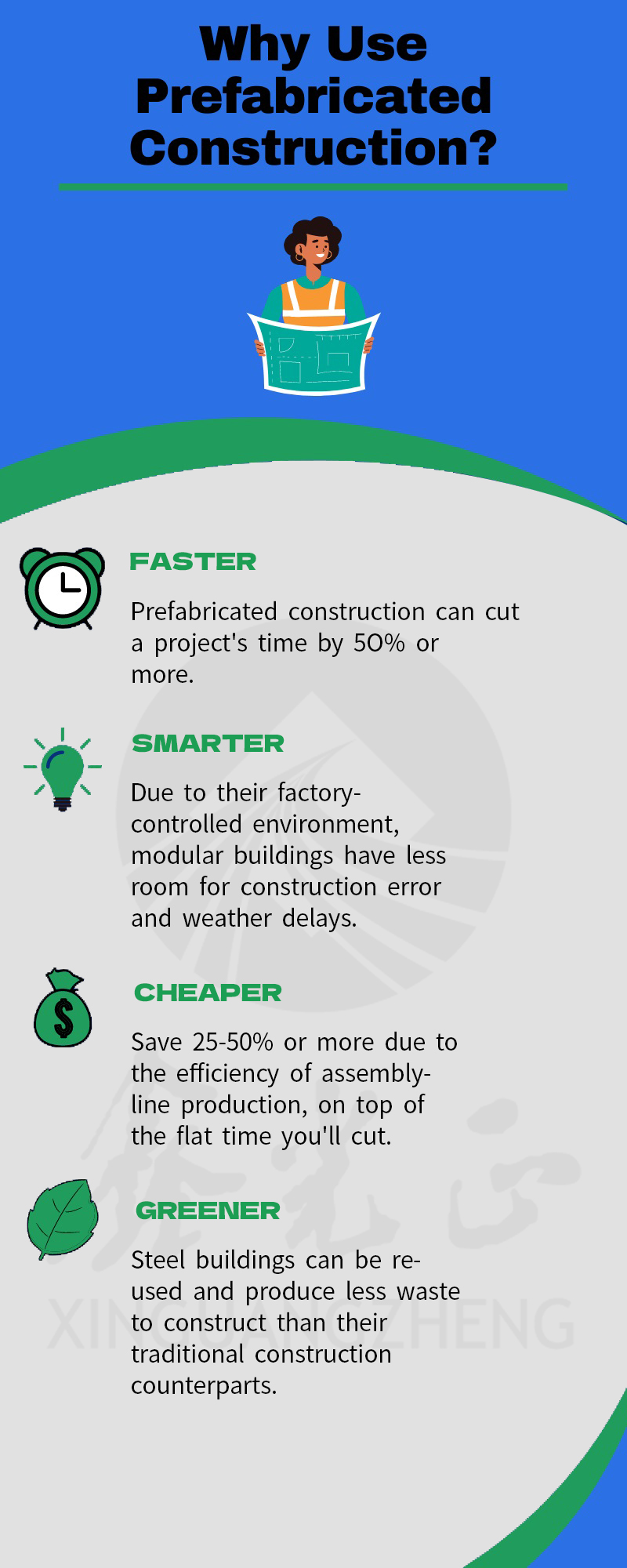

  • Why Use Prefabricated Construction?

    3345

  • Who Uses Prefabricated Building?

    The short construction time, high quality, and cost savings make prefabricated buildings desirable for many industries. Plus, the quality of prefabricated steel building is becoming better year over year. Prefabrication is more about how the building was made rather than the kind of building it is. Therefore basically any professional company can make use of a prefabricated steel structure building.
    Some industries may need a turn-key construction method due to a variety of limitations. For instance, they may be on a tight budget. Additionally, they may need the space to be up and running very quickly or need uniformity in structure that prefabrication provides. For those reasons, the top industries that have been turning to prefabricated buildings are:
    Industrial Park
    Warehouse Steel Structure
    Hangar
    Factory/Plant
    Logistics and Distribution Warehouse
    Commercial Retail
    Sports Complex
    Commercial retail
    Hotels
    Educational facilities 
    The number of large, well-known companies choosing prefabricated steel structure buildings speaks for the value!
    Qingdao Xinguangzheng Steel Structure is a comprehensive enterprise group which specializes in manufacturing steel structure materials, designing and undertaking steel  structure buildings for industrial, commercial and residential applications since 1997. Our products and projects have already been exported to more than 110 countries around the world.
    Warmly welcome your visit to our company!

  • What Is A Prefabricated Building?

        A prefabricated building is a building that is constructed off-site at a climate-controlled facility. They are manufactured using factory-made units. Then, the parts are delivered to the building construction site and do the fabrication, using cranes and other construction machinery.
        High Quality Prefabricated Building Manufactured By Qingdao Xinguangzheng Steel Structure, we can supply you with the highest-quality steel structure at competitive price. Prefabricated buildings can be used for everything from airplane hangars, warehouses, workshops, office buildings, industrial and commercial buildings, agricultural buildings, sheds, and much more.
        Request a quote on your building construction today.

  • What's Shear Key in Steel Structure?

    In steel structure construction, the column base connection is the critical component connecting the superstructure with the concrete foundation. It needs to safely and reliably transfer various loads from the superstructure: vertical compression, uplift tension, bending moment, and horizontal shear.
    When the horizontal shear force is significant, and the friction resistance between the column base plate and the concrete foundation contact surface alone is insufficient to resist it, a key small component becomes indispensable—this is the Shear Key.

    What is a Steel Structure Shear Key?
    A shear key, as the name implies, is a steel connection component specifically designed to resist and transfer horizontal shear forces. It is essentially a short steel member.

    Where does it install?
    Typically welded or anchored to the base plate of a steel column (or other load-bearing members like equipment supports), with its lower end embedded in the cast-in-place concrete foundation or concrete structure below.

    What are common types?
    Headed Studs: Like short nails with a larger head, factory-welded to the base plate. The most widely used type, with a high degree of standardization.
    Short Sections of Structural Steel: Such as angle steel, T-sections, channel sections, or I-beam segments. Used for heavy-duty structures or equipment foundations with very high shear forces, offering large load-bearing capacity and stiffness.
    Shear Plates: A thick steel plate with holes or anchor bars, pre-embedded in concrete and welded to the column base plate.

    What are characteristics?
    It is not an ordinary anchor bolt. Anchor bolts primarily resist uplift forces and fix the position, whereas the core mission of the shear key is to handle horizontal shear forces. It acts as the "stabilizing pillar" preventing sliding in structural safety.

    In short: A shear key is a steel "stop block" or "pin" rooted in the concrete and welded to the steel column base, specifically designed to prevent horizontal sliding between the steel structure and the foundation.

  • Why Is the Steel Called “A36” in the U.S. and “Q235” in China?

        In steel structure project design, procurement and construction, accurately interpreting steel grades is a key aspect of ensuring material compliance and building engineering safety.

        China Steel Grade System

        China's steel grading system is based on the combination of "Pinyin letters + Chemical element symbols + Arabic numerals," with each character corresponding to specific material properties.

    Steel Grade Corresponding Standard Tensile Strength (MPa)
    Q235 GB/T 700 235
    Q345 GB/T 1591 345
    A36 A572Gr.50 250
    A36 ASTM A36 250
    A336 ASTM A572 345

    Carbon Structural Steel/Low Alloy High Strength Structural Steel (Most Common)

    Core format: Q + Yield Strength Value + Quality Grade Symbol + Deoxidation Method Symbol

    Q: Derived from the first letter of "yield strength", representing the steel's primary indicator as yield strength.

    Numerals: Represent the yield strength value (in MPa), such as Q235 representing a yield strength ≥235MPa, Q345 representing ≥345MPa.

    Quality Grade Symbol: Ranges from A to E, corresponding to impact toughness requirements from low to high (Grade A does not require impact testing, while Grade E requires impact testing at -40°C). For example, Q345D indicates low alloy steel with a yield strength of 345MPa and Grade D quality.

        U.S. Steel Grade System: ASTM/SAE

    Carbon Steel and Alloy Structural Steel (SAE/ASTM General Use)

    Core format: Four-digit number + (letter suffix)

    First Two Digits: Represent the steel type and main alloy elements, acting as a "classification code." Common correspondence is as follows:

    10XX: Carbon steel (no alloy elements), such as 1008, 1045.

    15XX: High manganese carbon steel (manganese content 1.00%-1.65%), such as 1524.

    41XX: Chromium-molybdenum steel (contains chromium 0.50%-0.90%, molybdenum 0.12%-0.20%), such as 4140.

    43XX: Nickel-chromium-molybdenum steel (contains nickel 1.65%-2.00%, chromium 0.40%-0.60%), such as 4340.

    30XX: Nickel-chromium steel (contains nickel 2.00%-2.50%, chromium 0.70%-1.00%), such as 3040.

    Last Two Digits: Represent the average carbon content (measured in ten-thousandths), such as 1045 representing carbon content ≈0.45%, and 4140 representing carbon content ≈0.40%.


  • How To Select A Qualified Steel Structure Manufacturers & Construction Suppliers?

    Undertaking steel structure projects requires corresponding qualifications.
    At present, China's steel structure engineering professional contracting qualification is divided into first, second and third grades, of which one is the highest and three is the lowest.

    For specific steel structure engineering projects such as steel structure workshops, prefab steel structure offices, etc., what qualifications are needed?

    There are clear provisions in China construction qualification standards, and the scope of contracted projects corresponding to different qualifications is different:

    First-grade qualification enterprises can undertake steel structure projects: steel structure height of more than 60 meters, span of more than 30 meters, lattice structure, grid structure short side span of more than 50 meters, single steel structure engineering steel structure total of more than 4,000 tons, single building area of more than 30,000 square meters.

    Second-grade qualification can undertake steel structure projects are: steel structure height below 100 meters, single span of steel structure below 36 meters, short side span of lattice shell and grid structure below 75 meters, total steel structure weight of single steel structure project below 6,000 tons, and single area below 35,000 square meters.

    Third-grade qualification can undertake the following projects: steel structure height is less than 60 meters, single span of steel structure is less than 30 meters, short side span of lattice shell and grid structure is less than 33 meters, total weight of single steel structure project is less than 3,000 tons, and single building area is less than 15,000 square meters.

    If you will build a steel structure factory project or warehouse steel structure building, please reach to us by Whatsapp +86-15853209069 or by Email anna@sinosteelstructure.com

  • What's the General Slope Of Warehouse Steel Structure For Factory?

    Roof slope of a steel structure factory is an important architectural element, which not only affects exterior appearance, but also its functionality and service life.

    1. The significance of the roof slope
    The roof slope of steel structure workshop is mainly for drainage and waterproof. The appropriate slope can ensure the smooth discharge of rainwater and snow, prevent water accumulation from damaging the roof, and ensure the safety inside the factory. In addition, the roof slope can also enhance the appearance and the overall architectural image of the workshop.

    2. Design principles
    When designing and constructing a  steel structure workshop, the local geographical environment, climatic conditions, rainfall and construction requirements will be considered comprehensively to determine the appropriate roof slope.
    Generally speaking, the roof slope should be set according to local rainfall. In rainy areas, the roof slope should be larger to ensure rapid drainage and prevent water accumulation. Otherwise, it would be reduced to save construction costs.
    At the same time, the roof slope should also take into account the discharge of snow water. In areas with heavy snowfall, a larger slope will be selected to facilitate the rapid discharge of snow water. In areas with less snowfall, a smaller slope can be selected.

    3. Calculation method
    It is mainly calculated according to roof area and rainfall. Generally speaking, the larger roof area, the larger the slope required. At the same time, the slope of the roof and the design of the drainage system can be adjusted according to the amount of rainfall.

    In short, the roof slope of a steel structure workshop is an important building element, which is related to the functionality and service life of the workshop. Various factors need to be considered comprehensively to determine the appropriate roof slope to ensure the safety, practicality and beauty of the factory.

    If you need the warehouse steel structure for workshop building, warmly welcome your inquiry to annaworldbiz@hotmaiil.com, or Whatsapp us +86-15853209069


  • Why Does Modern Industrial Workshop Choose Steel Structure Building Soultion?

    Fast construction speed: Steel structure workshop can be fabricated quickly because steel components can be prefabricated in the factory and only need to be bolted on construction site, which shortens the construction period.

    Eco-friendly and sustainable: Steel can be recycled and reused, and the noise and dust generated during the construction process are relatively small.

    High strength and light weight: Steel structure workshop has high strength and can withstand large loads. At the same time, their weight is relatively light, which can reduce the cost and construction difficulty of civil engineering works.

    High space utilization rate: The space utilization rate of steel structure workshop is high, because the steel structure can arrange the space flexibly, making the space of the workshop more flexible and open.

    Easy maintenance: Steel structure workshop has good anti-corrosion and fire-proof properties, which can reduce maintenance costs and difficulty.

    In summary, modern industrial workshop design and warehouse construction prefer steel structure building solution because of its fast construction, environmental sustainability, high strength, light weight, high space utilization and easy maintenance. If you need the steel structure workshop building, warmly welcome your inquiry to anna@sinosteelstructure.com, or Whatsapp us +86-15853209069


  • What Procedures Are Required When Building A Steel Structure Workshop?

    First, confirm the land is industrial land purpose, if it is not legal industrial land, it will be allowed to build steel structure workshop on it.

    Second, if building a steel structure workshop on leased land, it needs to specify who will owns the building after term of lease. Or you can choose to renew this workshop building lease.

    Third, take the workshop procedures to local Land Administration Bureau to handle the relevant formalities, you need to get certificate for the right of land usage first, and then a planning permission.

    Fourth, go to local environmental protection department and construction department to apply for documents and certificates. A construction permit is required before starting steel structure workshop construction.

    Qingdao Xinguangzheng Steel Structure, is a comprehensive enterprise group which specializes in manufacturing steel structure materials, designing and undertaking steel  structure buildings for industrial, commercial and residential applications, like workshop, hangar, warehouse, cold room, sports hall, shopping center, exhibition showroom, classroom and prefabricated house, etc.


  • What're Points Affecting Steel Structure Workshop Building Construction Price?

    1. Steel building height: The cost will be increased 2%-3% with every 100mm higher change.
    2. Bridge crane and crane tonnage
    3. Workshop cladding: Roof and wall materials with/without insulation, window & door quantity and size
    4. Building structural type, building application
    5. Construction area: it is the most essential influence. If building is large area, which will need more steel quantity and cost.
    6. Workshop layout: Generally speaking, larger span, less price. However, the span is designed according to the actual requirements as well as the column distance.
    7. Steel quantity: Design concept and load, steel materials and application will affect the building cost. Steel quantity is the most important point affecting steel structure workshop budget.
    Qingdao Xinguangzheng Steel Structure, is a comprehensive enterprise group which specializes in manufacturing steel structure materials, designing and undertaking steel  structure buildings for industrial, commercial and residential applications, like workshop, hangar, warehouse, cold room, sports hall, shopping center, exhibition showroom, classroom and prefabricated house, etc.

  • What is Live Load?

    Live load, referred to as live load, also known as variable load, is the use or occupation load caused by people, materials and vehicles and naturally generated natural load.
    It is not fixed and will change with the change of the use and working conditions.
    The specific types of live load include but are not limited to industrial building floor live load, civil building floor live load, roof live load, house area ash load, vehicle load, crane load, wind load, snow load, ice wrapped load, wave load, etc.

  • What's Industrial Park?

    An industrial park is a section of the city that has been designated, planned, and zoned for industrial development. It can combine a mix of production, transportation, and storage in the same area.
    Industrial Parks can serve multiple focus areas, depending on the primary industrial activity. For example, a park focused on heavy industry usually caters to large scale manufacturing industries and some warehousing activities, even to office buildings.
    According to the specialization of the park:
    Manufacturing park
    Science or Technology Park
    Research & Development Park
    Agro-Industrial Park
    Eco-Industrial Park
    Export Processing Zone/ Free Trade Zone
    By 2025, the Qingdao International Investment Industrial Park will contain no less than 130 leading enterprises and have an industrial scale of $38.66 billion according to the plan.

  • Who Designs Concrete Slabs?

    Steel Structure Building for Workshop and Warehouse will come with anchor bolt design that provides the building’s reactions and dimensions.
    It's better that you hire an engineer, they will take account of this information and design the foundation accordingly.

  • How much do industrial buildings cost?

     “How much does a steel building cost?” This response depends on many factors.
     We need to know the construction location, building size, and use of the structure. A specialty warehouse such as a manufacturing facility may have special requirements such as suspended catwalks, crane beams, and more that need to be accounted for in the structural design.

    Qingdao Xinguangzheng Steel Structure possessed large precise and advanced equipments and production lines such as Assembly Machine, Single-armed Type SAW Machine, Shot Blasting Machine, Flaming Cutting Machine, CNC Intersecting line Cutting Machine, Purlin Machine, Corrugated Steel Sheet Production Line, Sandwich Panel Production Line, etc.

    Get A Quote Now!

  • Is it worth insulating an industrial steel structure building?

    Yes, insulation can provide steel structure building with a variety of benefits, improving its longevity and producing a more comfortable interior. Although not every steel structure will require insulation, insulated steel structure buildings are a valuable asset for long time view.

  • Can steel structure only be used for large building construction?

    Steel structure can be used for any building structure from residential, industrial to commercial, from small to large-scale. Steel makes the ideal for all building projects. It can meet almost any project’s requirements, specifications and timeline.
    Founded in 1997 specializing in the design, production and construction of steel structure for agricultural, industrial, commercial and residential applications. 24+ year experience in steel structure field, Xinguangzheng is deeply looking forward to cooperating with clients worldwide.

  • How much price of warehouse steel structure?

    Warehouse steel structure costs are depending on some factors, like: warehouse location, size, design load the materials used and interior facilities including mezzanine, office, overheaded crane, fire proof coatings, etc.

    Generally speaking the per square meter price range of warehouse steel is about $35-$225. By taking into consideration hard costs, soft costs, and financing costs, it’s possible to create a realistic budget for a warehouse steel structure project.

    Get Your Warehouse Steel Structure Price Now!

  • Is steel the best option for warehouse steel structure?

    Steel building designs are quite flexible and offer endless customization options.

    Flexible in combination with other materials.

    Fast on-site build for prefabricated buildings.

    Is reusable and endlessly recyclable.

    Faster lead and build times.

    Warehouse steel structure offers a cost-effective edge both today and in the long term.

    Advanced weather, rusting and fire protection.

    Complete customization potential.

    Interested in a prefabricated building for warehouse steel structure? Get a Quote Now.

  • If I install steel structure building by myself, what tools will I need?

    Except for the normal tools like transit instrument, electric saw, electric screw/bolt driver, spanner, hammer, electric grinder, etc, you would likely find in warehouse, you need industrial lifting equipment to lift columns and beams. And you also need to find track loader, forklift, loader, welding machine......
