The most common point of failure in aviation facility design is not the primary frame itself, but the under-calculation of dynamic and static forces exerted by massive clear-span doors. Facility owners and engineers must bridge the gap between architectural requirements, such as wide clear spans and specific door types, and structural realities. Failing to account for specific door loads results in operational binding, structural fatigue, or catastrophic failure under extreme weather events.
Designing a resilient facility requires treating the door system and the primary frame as a single, interdependent structural unit. This guide breaks down the exact dead, live, environmental, and operational loads that must be calculated to ensure structural integrity and code compliance. You will learn how different door mechanisms transfer weight and wind stress, why strict deflection limits are non-negotiable, and how to align your building envelope with the mechanical demands of your hangar doors.
Load Path Dependency: The choice between the five primary door types (sliding, bi-fold, hydraulic, vertical lift, and fabric) fundamentally alters how weight and wind stress are distributed across the primary frame.
Deflection is the Enemy: Standard building deflection limits are insufficient; hangar headers require ultra-strict tolerances to prevent door binding during snow or wind events.
Dynamic vs. Static Forces: Engineering must account for the kinetic energy of moving doors, including motor torque, braking forces, and asymmetrical loading during operation.
Holistic Envelope Engineering: Wind load transfer from the door face to the building columns dictates the required steel tonnage and lateral bracing strategy.

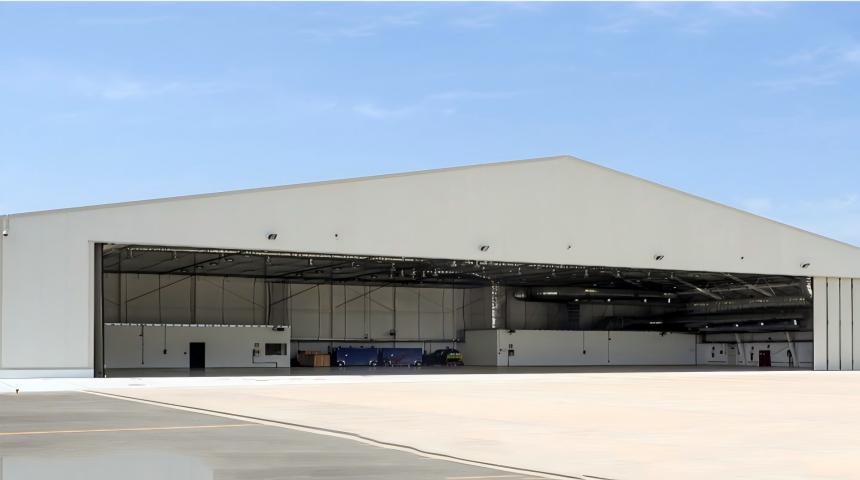

The baseline requirement for any aviation facility is straightforward but mechanically complex: the structural frame must support the building envelope while simultaneously managing the concentrated loads of the hangar door without exceeding operational deflection limits. You cannot approach this like a standard commercial warehouse. Compare the heavy, rigid-frame requirements of an aviation facility to a standard light steel factory building, where clear spans are smaller and dynamic wall loads are negligible. In a light manufacturing setup, the walls just sit there. In a hangar, the entire front wall moves, shifts, and catches the wind.
Hangar door engineering shares strict deflection tolerances with a glass curtain wall steel building, where excessive lateral drift causes immediate component failure. If a glass facade shifts too much, panels shatter. If a hangar header sags too much, a 20-ton door jams halfway open, grounding aircraft and halting operations. A closed hangar door acts as a massive sail, capturing wind pressure and transferring it directly into the building's columns and roof diaphragm. The frame must possess sufficient rigidity to prevent lateral sway, ensuring the door tracks remain perfectly aligned under heavy environmental stress.
When you stand on a job site and watch a 120-foot bi-fold door open, you can physically hear the steel frame take the load. The columns take the moment forces, the header takes the vertical pull, and the entire structure reacts. If the engineering is off by a fraction of an inch, the motors burn out trying to overcome the friction of a binding track. This is why the door and the frame must be engineered together from day one.
To engineer a resilient facility, structural engineers must calculate a combination of static, dynamic, and environmental forces. These calculations dictate the size, weight, and configuration of the steel framing members. You cannot guess these numbers; they must be extracted from the door manufacturer's certified reaction force data.
Dead loads represent the static weight of the door system. This includes the total physical weight of the door panels, internal framing, exterior cladding, and all mechanical components. You have to account for the motors, gearboxes, lifting cables, heavy-duty straps, and the horizontal or vertical rollers. Heavy insulation requirements significantly increase this weight.
Calculate the bare frame weight of the door sections.
Add the weight of the exterior sheeting and interior liner panels.
Factor in the exact weight of the insulation package.
Include the mass of the drive shaft, motors, and lifting mechanisms.
Wind loads exert powerful horizontal forces on the building envelope. The frame must manage the distribution of positive inward pressure and negative suction pressure from the door face to the top guides, bottom tracks, and ultimately the primary structural columns.
When a 100-foot wide door takes a 100mph gust, the force does not just hit the door; it transfers through the top guide rollers directly into the building's header, trying to push the roof backward. The lateral bracing of the primary frame must be robust enough to absorb this shock without allowing the columns to drift out of plumb.
Vertical and operational loads are heavily influenced by winter weather. Calculating roof snow load is critical because snow weight directly impacts header beam deflection. If the roof sags under a heavy snowdrift, it pushes down on the door header. If the header deflects too far, it crushes the top of the door or binds the rollers.
Furthermore, engineers must account for ice accumulation on the door panels themselves. Ice increases the dead load and places severe operational strain on lifting mechanisms. A bi-fold door covered in half an inch of freezing rain weighs significantly more than its dry design weight, requiring higher safety factors for cables and hydraulic rams.
In earthquake-prone regions, seismic loads introduce dynamic lateral forces. The frame must be engineered for the lateral acceleration of the door's mass during a seismic event. Specific bracing requirements are necessary to prevent the door from derailing, binding, or collapsing outward when the ground shifts. The connections between the door guides and the primary steel must allow for slight movement without catastrophic failure.
The type of door installed fundamentally changes the load path and the required steel tonnage of the primary frame. Understanding these differences is essential for optimizing the structural design and avoiding massive cost overruns during the steel detailing phase.
| Door Type | Primary Load Path | Structural Impact on Frame | Best Use Case |
|---|---|---|---|
| Bottom-Rolling / Sliding | Foundation (Dead Load), Top Guides (Wind Load) | Requires highly engineered foundations; allows lighter roof headers. | Massive commercial hangars with extremely wide clear spans. |
| Bi-Fold (Strap/Cable) | Header and Columns | Requires massive header reinforcement to prevent vertical deflection. | General aviation and mid-sized corporate hangars. |
| Hydraulic | Header and Columns | Requires heavy framing to resist outward horizontal thrust (wedge effect). | Facilities requiring maximum clear height without sacrificing headroom. |
| Vertical Lift / Fabric | Jambs and Columns | Requires stiffened columns to handle stacked weight and wind transfer. | Heavy industrial sites and extreme weather environments. |
For bottom-rolling doors, the majority of the dead load is transferred directly into the concrete foundation via bottom rails. The aircraft hangar steel structure primarily handles horizontal wind loads transferred through top guide rollers. The bottom rails carry the physical door weight plus a localized portion of the wind load. Mechanical specifications often incorporate dual-roller systems with both horizontal and vertical rollers built directly into the guide frame to manage multi-directional forces.
While this requires highly engineered, deep-trench foundations with embedded steel tracks, it allows for lighter steel framing in the roof header. Because the roof does not have to hold up 40,000 pounds of steel door, the clear-span trusses can be optimized for snow and wind loads rather than massive point loads.
Bi-fold and hydraulic doors hang directly from the building's header and columns. The entire dead load, plus dynamic lifting forces, is suspended from the roof structure. This requires massive reinforcement of the clear-span truss or header to prevent vertical deflection. When a bi-fold door starts to open, the angle of the lifting straps pulls both up and in, creating a complex moment force on the header beam.
For hydraulic doors, the frame must also resist the outward horizontal thrust, known as the "wedge effect," generated when hydraulic rams push the door open. The rams are mounted to the building columns and push outward against the door panel. This means the columns must be heavily stiffened to prevent them from bowing outward under the pressure of the hydraulic cylinders.
Vertical lift and fabric doors distribute loads vertically along the jambs and columns. This configuration requires stiffened columns to handle the wind load transfer and the weight of the stacked door sections or fabric mullions at the top of the opening. The header must support the hoisting mechanisms, the heavy-duty motors, and the gathered material when the door is fully open. Because these doors often operate in high-wind environments, the wind locks and side guides transfer intense lateral loads directly into the column flanges.
Designing the frame involves balancing cost, clear span requirements, and door type. Reinforcing a header for a 100-foot bi-fold door carries different cost implications than pouring a specialized, deep-trench foundation for a bottom-rolling door. Increasing the clear span exponentially increases the required steel tonnage to manage door loads, making early door selection a critical factor in overall project feasibility. You cannot design the steel frame and then shop for a door later; the door dictates the steel.
Integration with secondary systems and egress must also be calculated. Designing ADA-accessible personnel doors built directly into a main door leaf or within designated pocket spaces allows emergency egress to the flight line. Engineers must calculate localized structural reinforcement around these personnel door cutouts to prevent wind-load buckling. The weight of specialized architectural finishes or glazing on the door exterior must also be factored into the final load calculations. If an architect decides to add heavy glass panels to the door face for aesthetics, the structural engineer must recalculate the dead load and the lifting mechanism requirements.
Utilizing uncertified, field-welded, or DIY single-panel doors built from raw steel introduces severe structural risks, including warping, squaring issues, and uncalculated reaction forces. A door that is welded out of square in the field will bind in the tracks, transferring unpredictable stress into the building columns. Factory-engineered door systems with certified reaction-force profiles are critical for the safety of the main structure.
Common engineering failures include failing to account for asymmetrical loading, such as one motor pulling faster than another on a strap-lift bi-fold, and ignoring the outward horizontal thrust of hydraulic cylinders. If one side of a bi-fold door lifts slightly faster than the other, it creates a twisting force (torsion) on the header beam. The steel must be designed to resist this torsion.
To mitigate these risks, the door manufacturer must provide sealed engineering drawings specifying exact reaction forces before the primary building engineer finalizes the steel frame design. Mandating a pre-design coordination meeting between the structural engineer of record and the door manufacturer's engineering team is essential. They must agree on the load paths, the connection details, and the deflection limits before any steel is fabricated.
An aviation facility cannot be engineered in isolation from its door system. The door's operational mechanics and environmental load transfers dictate the fundamental design of the primary frame. When evaluating manufacturers, prioritize vendors who provide transparent, stamped reaction-force data and demonstrate experience in integrating complex load paths.
Select your specific door type and exact dimensions before finalizing any primary steel orders or foundation pours.
Obtain the manufacturer's certified load specifications, ensuring they meet the 30 psf minimum load standard and account for local snow loads.
Require your structural engineer to run a combined load analysis that includes both static dead weights and dynamic operational door forces.
Schedule a mandatory coordination meeting between the door supplier's engineering team and the structural engineer of record to verify connection points.
A: While requirements vary by local code, standard designs require a 30 psf minimum design wind pressure. In coastal or hurricane-prone zones, these systems are often scaled to withstand wind speeds ranging from 115mph to over 170mph, requiring heavy lateral bracing.
A: Bi-fold doors hang entirely from the header. This requires significant steel reinforcement in the roof truss to prevent vertical deflection and horizontal twisting during operation, especially when lifting the heavy door panels against wind resistance.
A: The dead weight of a bottom-rolling door rests entirely on the foundation track. However, the primary steel frame must still be engineered to absorb the horizontal wind loads transferred through the top guide rollers attached to the header.
A: Standard limits allow for too much movement. Hangars require ultra-strict deflection limits, often L/600 or better, to prevent the roof header from sagging under snow loads, which would cause the massive doors to bind, jam, or derail.
A: The wedge effect refers to the outward horizontal thrust generated when hydraulic rams push a single-panel door open. The building columns and header must be specifically reinforced to resist this outward pressure to prevent structural bowing.
A: Yes, ADA-accessible personnel doors can be built into a main door leaf or within pocket spaces for emergency egress. However, the surrounding door frame requires localized structural reinforcement to prevent buckling under heavy wind loads.
