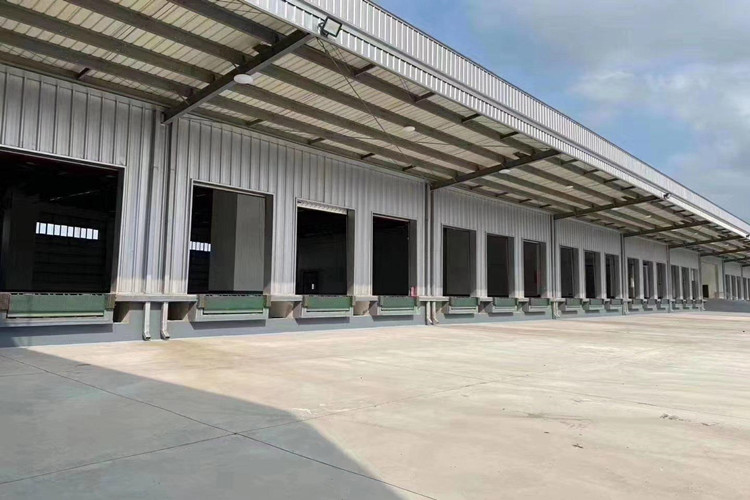

Dock doors act as the primary chokepoints in any distribution center. Miscalculated spacing leads to staged pallets blocking travel lanes, increased forklift travel times, and severe operational bottlenecks. Facility planners often treat building architecture and material handling workflows as separate disciplines. When door spacing does not align with forklift turning radii, equipment classifications, and truck bay requirements, the resulting congestion permanently caps facility throughput and increases collision risks. Achieving optimal traffic flow requires engineering the building's framework around operational needs. This guide breaks down how to calculate precise door spacing, integrate OSHA safety standards, and design a structural layout that supports seamless inbound and outbound logistics.
Structural Alignment: The column grid of a logistics warehouse steel structure dictates maximum dock door density, staging area depth, and the types of doors that can be installed.
The 12-Inch Rule & Precision Maneuvering: Forklift lanes and door clearances must account for the physical width of the load plus a minimum of 12 inches of clearance on all sides to maintain safe, high-speed maneuvering, especially when loads are significantly wider than the forklift itself.
Flow Optimization: Designing looped or circular traffic flows prevents dead ends, reducing forklift travel time and minimizing congestion at the loading docks.
Risk Mitigation: Integrating clear separation between pedestrian walkways and forklift operating zones is a strict OSHA requirement that must be factored into total door spacing calculations.
Efficient flow defines the success of any distribution operation. True efficiency means minimized travel distance from the dock plate to the storage rack. It requires zero staging overlap into active travel lanes. Operators must maintain continuous movement without constantly reversing or waiting for clearance. Achieving this state depends entirely on the physical skeleton of the building. The structural grid dictates where trucks park, where pallets land, and how fast operators can safely move.
The bay sizing within a warehouse steel structure determines exactly where dock doors can be cut. Steel buildings rely on primary framing members, typically rigid I-beam columns, spaced at specific intervals. You cannot place a dock door where a main structural column stands. The distance between these columns dictates the maximum door width and the total number of doors you can install along a single wall.
Facility designers face a constant trade-off. You want to maximize the number of dock doors to increase shipping capacity. However, you must leave adequate interior wall space. This solid wall space houses essential operational components. You need room for staging areas, battery charging stations, dock leveler control panels, and pedestrian safety zones. Pushing doors too close together eliminates this interior real estate. It forces auxiliary equipment into active traffic lanes.
Proper column spacing ensures you can fit standard 9-foot or 10-foot doors while maintaining enough structural steel to support heavy wind loads. When you cut a large opening into a steel wall, you interrupt the load path. The wall girts must transfer the wind load to heavy C-channel header beams above the door, which then transfer the load to the main columns. If doors are spaced too tightly, there is not enough physical room to install these structural headers and reinforced jambs.
Tight spacing triggers a cascade of negative operational effects. When doors sit too close together, inbound and outbound staging areas overlap. Forklifts must travel farther than necessary to bypass this congestion. Operators spend valuable time navigating around staged pallets rather than moving product directly to the racks. Pallets inevitably end up staged in active travel lanes. This forces other operators to stop, reverse, and find alternative routes.
These bottlenecks directly impact operational output. Equipment suffers increased wear-and-tear from constant stopping, starting, and tight maneuvering. Labor costs rise significantly. Pallets-per-hour metrics plummet when operators cannot maintain a fluid driving pace. Furthermore, tight clearances increase the risk of structural damage. Forklifts frequently clip door jambs, dock seals, and adjacent pallets.
Consider the concrete foundation. Dock levelers require recessed concrete pits, typically 6 feet wide by 8 feet long. If you space dock doors at 12 feet on center, you only have 6 feet of concrete slab remaining between the pits. This narrow strip of concrete must support the heavy steel column base plates, the anchor bolts, and the dynamic load of forklifts driving over the area. Over time, tight spacing leads to concrete spalling and structural failure at the dock edge.
You must translate physical measurements and equipment specifications into operational throughput. Designing a functional dock wall requires more than just drawing rectangles on a blueprint. You must evaluate the specific machinery operating within the space. You must understand the dimensions of the freight. You must account for the exterior turning requirements of the delivery trucks.
Different forklift classifications dictate distinct turning radii and approach angles. A Class II 3-wheel narrow aisle reach truck pivots almost entirely on its own axis. A Class IV heavy-duty 4-wheel counterbalance truck requires a massive turning radius to align with a dock plate. You cannot design a universal door layout without knowing which equipment will cross the threshold.
These specific equipment profiles must inform the center-to-center spacing of dock doors within an industrial warehouse steel structure. Counterbalance trucks need wide approach lanes. If doors sit too close together, a forklift backing out of a trailer will swing its counterweight into the adjacent staging lane. This swing radius forces adjacent operators to stop working until the first forklift clears the area.
To calculate the exact clearance required for your specific forklift fleet, follow these steps:
Measure the maximum width of the forklift chassis.
Measure the maximum width of the widest pallet or freight bundle you handle.
Determine the manufacturer's stated right-angle stacking aisle width for your specific forklift model.
Add the length of the load to the right-angle stacking width to find the total required turning depth.
Map this turning radius against your proposed center-to-center door spacing to identify overlap zones.
Interior door clearance follows a strict formula. You must calculate the maximum load width, add the forklift width, and add a minimum of 12 inches of clearance on all sides. This space allows trained operators to maintain safe, high-speed maneuvering. A standard pallet measures 40 by 48 inches. However, many facilities handle irregular freight.
Precision maneuvering becomes extremely challenging when handling oversized loads. Moving long bundles of lumber, wide steel coils, or oversized machinery parts requires specialized planning. These loads often sit significantly wider than the forklift itself. They leave only inches of clearance on either side of an open bay door. When handling wide freight, standard 8-foot doors cause continuous product damage. You must specify 9-foot or 10-foot wide bay doors. You must also expand the approach lanes leading to these doors.
Load shift during transit also affects clearance. Pallets rarely arrive perfectly centered inside a trailer. Freight shifts against the trailer walls. If your dock doors are too narrow, operators cannot angle the forklift forks to pick up shifted pallets without scraping the door jambs. Wider doors provide the necessary angle of attack to retrieve off-center freight safely.
Exterior constraints play an equally critical role in door spacing. Standard highway trailers measure 8.5 feet wide. Standard dock doors typically measure 8, 9, or 10 feet wide. The center-to-center spacing of these doors usually ranges from 12 to 14 feet. This measurement directly impacts the ability of truck drivers to back into a bay without clipping adjacent trailers.
If you space doors at exactly 12 feet on center, an 8.5-foot trailer leaves only 42 inches of total clearance between trucks. That equals 21 inches per side. Drivers must execute perfect backing maneuvers to avoid tearing off mirrors or damaging dock seals. In high-volume facilities, this tight spacing causes massive yard delays. Trucks line up waiting for adjacent bays to clear before attempting to dock.
Expanding center-to-center spacing to 13 or 14 feet drastically reduces docking time. It minimizes yard accidents. It keeps the inbound freight flowing smoothly into the building. Yard jockey trucks can maneuver trailers into tighter spaces than standard sleeper cabs, but you should always design the exterior yard layout to accommodate the largest over-the-road trucks that will visit your facility.
Table: Exterior Trailer Dimensions and Recommended Bay Spacing
| Trailer Type | Trailer Width | Recommended Door Width | Minimum Center-to-Center Spacing | Yard Maneuvering Difficulty |
|---|---|---|---|---|
| Standard Dry Van (53') | 8.5 Feet | 9 Feet | 13 Feet | Moderate |
| Refrigerated Van (Reefer) | 8.5 Feet (Thicker walls) | 9 - 10 Feet | 13 - 14 Feet | High (Requires precise seal alignment) |
| Flatbed (Side Load) | 8.5 Feet | N/A (Ground loaded) | N/A | Low |
| Oversize / Specialized | 9+ Feet | 10+ Feet | 15+ Feet | Very High |
The staging area represents the critical buffer zone between the dock door and the first racking aisle. This depth determines how much freight you can offload before operators must move it into storage. Insufficient staging depth paralyzes a dock. Freight backs up into the trailers. Unloading stops.
A well-designed prefabricated steel warehouse can be engineered with specialized staging bays. These bays offer wider, deeper column-free zones immediately inside the loading dock. Standard staging depth typically ranges from 50 to 70 feet. This allows enough room to stage an entire 53-foot trailer load of pallets while maintaining a clear travel lane behind the staging grid.
Engineering the steel frame to support a 70-foot clear span in the dock area eliminates interior columns. It gives forklift operators total freedom to maneuver, sort, and stage freight without structural interference. This requires deeper steel rafters and heavier main columns at the dock wall, but the operational efficiency gained far outweighs the additional steel tonnage costs.
Evaluating different architectural frameworks based on operational demands ensures long-term facility success. You cannot force a high-throughput logistics operation into a poorly designed building. The steel skeleton must support the workflow.
Clear span designs offer zero interior columns. They provide maximum layout flexibility. You can arrange racks, staging lanes, and travel paths without worrying about hitting a steel post. However, clear span engineering becomes highly expensive as building widths exceed 150 feet. The massive steel rafters required to bridge that distance add significant material costs.
Multi-span designs prove much more cost-effective for massive footprints. These designs utilize interior support columns, typically HSS tubes or wide flange sections, to distribute the roof load. The challenge lies in navigating around these columns. You must align multi-span interior columns with the spaces between the dock doors. If a column sits directly in front of a dock door, it permanently obstructs the forklift path.
Structural engineers must coordinate the interior column grid with the exterior door layout. This ensures straight, unobstructed travel lanes from the trailer to the staging area. If your dock doors are spaced at 13 feet on center, your interior column grid should ideally be a multiple of that spacing, such as 39 feet or 52 feet, to ensure columns fall perfectly between the staging lanes.
Table: Structural Framing Options for Dock Walls
| Framing Type | Interior Columns | Maximum Practical Width | Impact on Forklift Flow |
|---|---|---|---|
| Rigid Frame Clear Span | None | Up to 150 Feet | Zero obstruction; maximum flexibility. |
| Multi-Span (Modular) | Yes (Grid layout) | Unlimited | Requires precise alignment with dock doors. |
| Lean-To Addition | At connection wall | Up to 60 Feet | Good for expanding existing dock areas. |
Custom engineering allows for variable bay spacing across the facility footprint. You do not have to use the same column spacing everywhere. You can design wider bays at the loading dock to accommodate larger doors and deeper staging. You can then transition to standard, tighter bays in the storage area where rack layouts dictate the grid.
Specifying the right door hardware remains critical. High-speed roll-up doors require different mounting clearances than standard sectional doors. The steel framing must include the necessary header beams and reinforced jambs to support heavy, fast-moving door mechanisms. A complete steel warehouse building integrates these requirements during the initial detailing phase.
When detailing the steel, you must also account for dock seals and shelters. These exterior components mount directly to the steel wall paneling and girts. If doors are spaced too closely, the dock seals will overlap, preventing proper installation and allowing weather infiltration. You must leave at least 18 to 24 inches of clear wall space between the outer edges of adjacent dock seals.
Door placement directly facilitates traffic patterns. You want to establish one-way, circular forklift traffic. This eliminates dead ends. It prevents dangerous 180-degree turns inside narrow aisles. Operators should drive in a continuous loop from receiving, to storage, to shipping.
Map out the relationship between inbound receiving doors and outbound shipping doors. Placing receiving doors on one side of the building and shipping doors on the opposite side creates a natural cross-docking flow. If doors must share the same wall, group receiving doors together and shipping doors together. Designate specific travel lanes for inbound and outbound traffic.
Proper door spacing allows you to paint clear floor markings. It gives operators the physical space required to follow the circular flow without crossing into oncoming traffic. When operators know exactly where the travel lanes are, and those lanes are wide enough to accommodate passing forklifts, overall facility speed increases safely.
Addressing regulatory compliance and operator safety protects your workforce and your investment. Long-term facility viability depends on designing a structure that can adapt to future technological shifts.
OSHA enforces strict guidelines for powered industrial trucks. Operators must maintain control of the forklift at all times. They must keep a proper lookout. They must maintain safe operating speeds, especially near bay doors and pedestrian crossings. You cannot expect operators to follow these rules if the building design makes it impossible.
Adequate door spacing naturally enforces OSHA rules. It provides sufficient reaction time. When doors sit far enough apart, operators have the visibility required to see cross-traffic. They have the physical clearance necessary for precision maneuvering. Tight, congested docks force operators to take risks. Wide, well-spaced docks promote safe, controlled movements. Designing the structural grid to support wide travel lanes keeps your facility compliant and your operators safe.
Integrating clear separation between pedestrian walkways and forklift operating zones is a strict requirement. You must design dedicated, physical barriers. Paint on the floor is rarely enough to stop a forklift. Install heavy-duty steel bollards and guardrails to protect pedestrian egress paths.
You must calculate the additional square footage required between dock doors to accommodate these safety zones. If you need a 4-foot pedestrian walkway between two staging areas, you must add that dimension to your center-to-center door spacing calculations. Failing to account for pedestrian pathways during the structural design phase forces you to steal space from active travel lanes later. This compromises forklift flow and creates dangerous pinch points.
When installing safety barriers, follow these guidelines:
Core drill bollards into the concrete slab rather than using surface-mount bolts for maximum impact resistance.
Place barriers at least 18 inches away from the edge of the pedestrian walkway to account for forklift fork overhang.
Use high-visibility yellow paint on all structural steel columns near the dock doors to prevent accidental impacts.
Install convex mirrors at the end of every staging lane to give operators visibility into the main travel aisle.
Address future-proofing before pouring the concrete foundation. Design the initial steel framework to allow for future dock door additions. You might only need 10 doors today, but you may need 20 doors in five years. Plan the column spacing along the entire dock wall to accommodate future knock-outs.
Consider the integration of Automated Guided Vehicles (AGVs). AGVs require wider turning radii than human-operated forklifts. They demand perfectly level floors and strictly defined travel paths. Retrofitting wider doors into existing load-bearing walls requires cutting steel girts and installing new headers. This disrupts operations and costs significant capital.
A properly engineered logistics warehouse steel structure anticipates these future needs. It provides the structural flexibility required to scale operations without tearing down the building. By installing framed openings and covering them with standard wall sheeting during initial construction, you can easily remove the sheeting and install new doors later without structural modifications.
Conduct a dynamic traffic flow simulation using your heaviest projected pallet weights and largest forklift dimensions to finalize door spacing.
Provide your structural engineer with exact dock leveler pit dimensions before they detail the foundation and steel column anchor bolt plans.
Specify 10-foot wide dock doors if your operation handles oversized freight or utilizes Class IV and Class V forklifts.
Map out dedicated pedestrian walkways and install core-drilled steel bollards to physically separate foot traffic from active loading zones.
Design the initial steel framework with framed knock-out panels to accommodate future dock door expansion without requiring structural retrofits.
A: Standard center-to-center spacing is typically 12 to 14 feet. This allows sufficient exterior clearance for standard 8.5-foot-wide trailers and interior space for forklift staging and precision maneuvering.
A: Aisles near loading docks should accommodate two-way traffic and staging. The general rule is the width of the largest forklift/load plus a minimum of 12 inches of clearance on all sides, often resulting in 13 to 15-foot wide primary travel lanes depending on the forklift classification.
A: Yes, but it requires structural evaluation. Adding doors involves cutting into the exterior cladding and potentially altering wall girts. The existing column spacing will dictate the maximum width and placement of new doors.
A: Poor placement forces forklifts to travel further, creates dead ends, and causes staged pallets to block active travel lanes. Strategic placement supports looped flows, reducing congestion and travel time.
A: Prefabricated structures offer rapid assembly, customizable clear-span capabilities to eliminate interior columns near the dock, and the structural integrity required to support high-volume, heavy-duty operational flows and specialized door hardware.
A: OSHA does not mandate specific door dimensions, but it strictly enforces safe operating environments. Doors must be wide enough to allow operators to maintain control, keep a proper lookout, and maneuver without collision risks, especially when handling loads wider than the forklift.
