Light Steel Structure Workshop in Indonesia

Views:0     Author:Site Editor     Publish Time: 2021-06-03      Origin:Site

side view

TEKLA DESIGN

steel frame fabrication

hangar

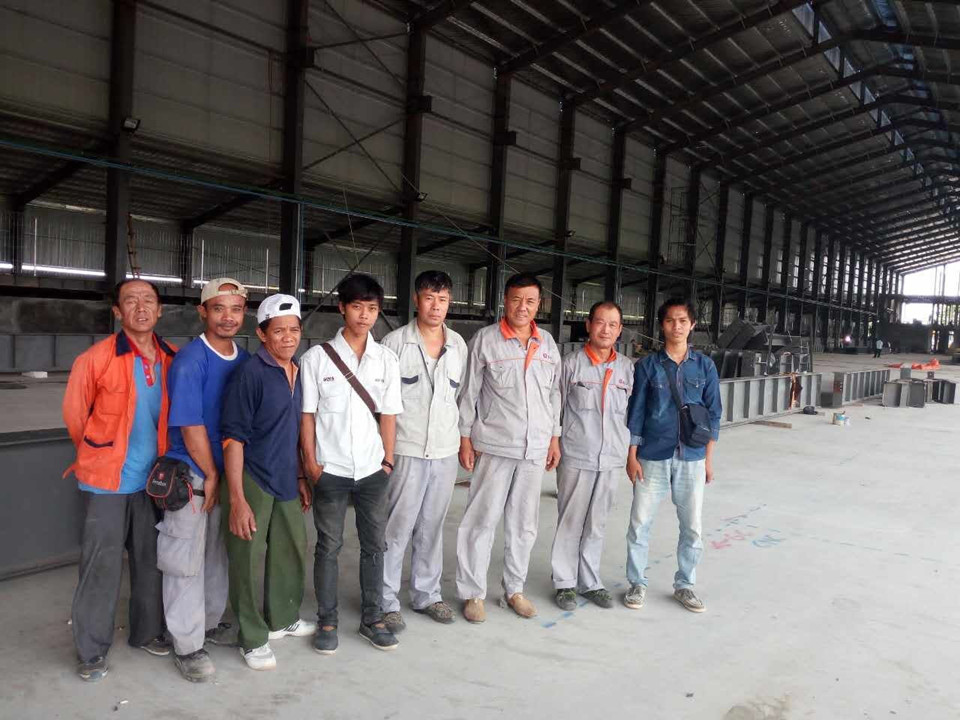

fabrication on site

Name of Building: Steel Structure Workshop

Structure System: Portal Frame

Building Application: Accessories assembly workshop for train

Construction Site:Indonesia

Project Details:

1. Main Specification: 170*28+168*5.5*2m

2. Steel Column, Beam: H section steels with mid-grey painting

3. Purlin: Galvanization Purlins

4. Roof Cladding: Color-coated steel sheet + fiber glass coil on site

5. Wall Materials: Color-coated steel sheet

6. Monitor on top roof; Louvers on side walls

7. Crane: 2 sets of 10 tons Cranes (double girder) + 1 set of 3.5 ton Gantry

8. Service: 2 engineers were sent to help Installation on site.
