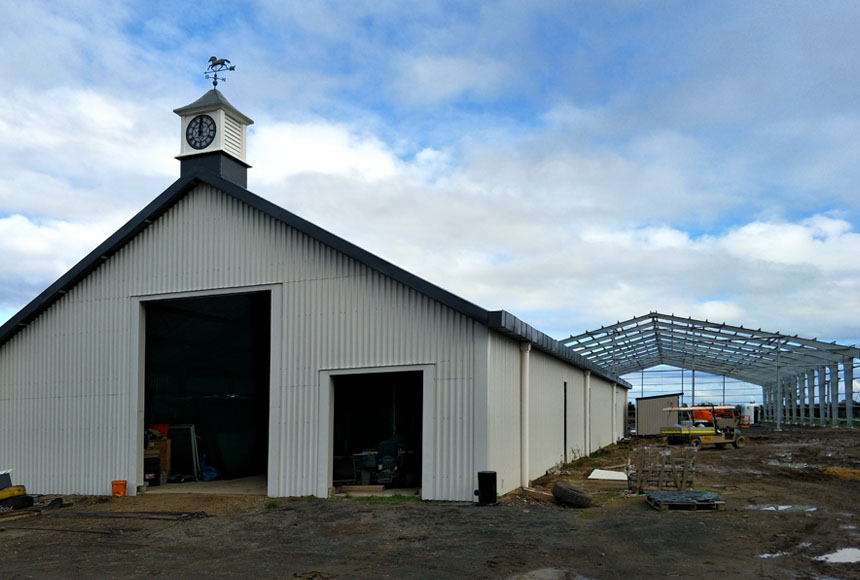

Horse Barn in New Zealand

Views: 0     Author: Site Editor     Publish Time: 2021-06-07      Origin: Site

light steels

horse arena

Name of Building: Horse Barn

Structure System: Light Steel Structure

Area:480sqm

Construction Site: New Zealand

Project Details:

1. Size of steel structure horse barn: 40m*12m*3.3m (Length* Width* Eave Height)

2. Primary Steel Structure: Hot rolled H section steel with hot-dip glavanized,which will be bolted together at site

3. Secondary Framing: C Purlin, Tie Bar, Roof and Wall Support are formed as secondary framing

4. Bracing: Round steel is supplied with knee bracing and other supporting parts that need portal framing, which will improve the stability and durability of the whole structural building.

5. All of steel frame are hot-dip galvanized according to client’s requirements, having good corrosion resistance.

6. Roof Cladding:0.55mm corrugated steel Sheet,iron grey color

7. Wall Cladding: 0.55mm Corrugated Steel Sheet in White

8. Door: two electric roller doors & two EPS sandwich panel sliding doors
